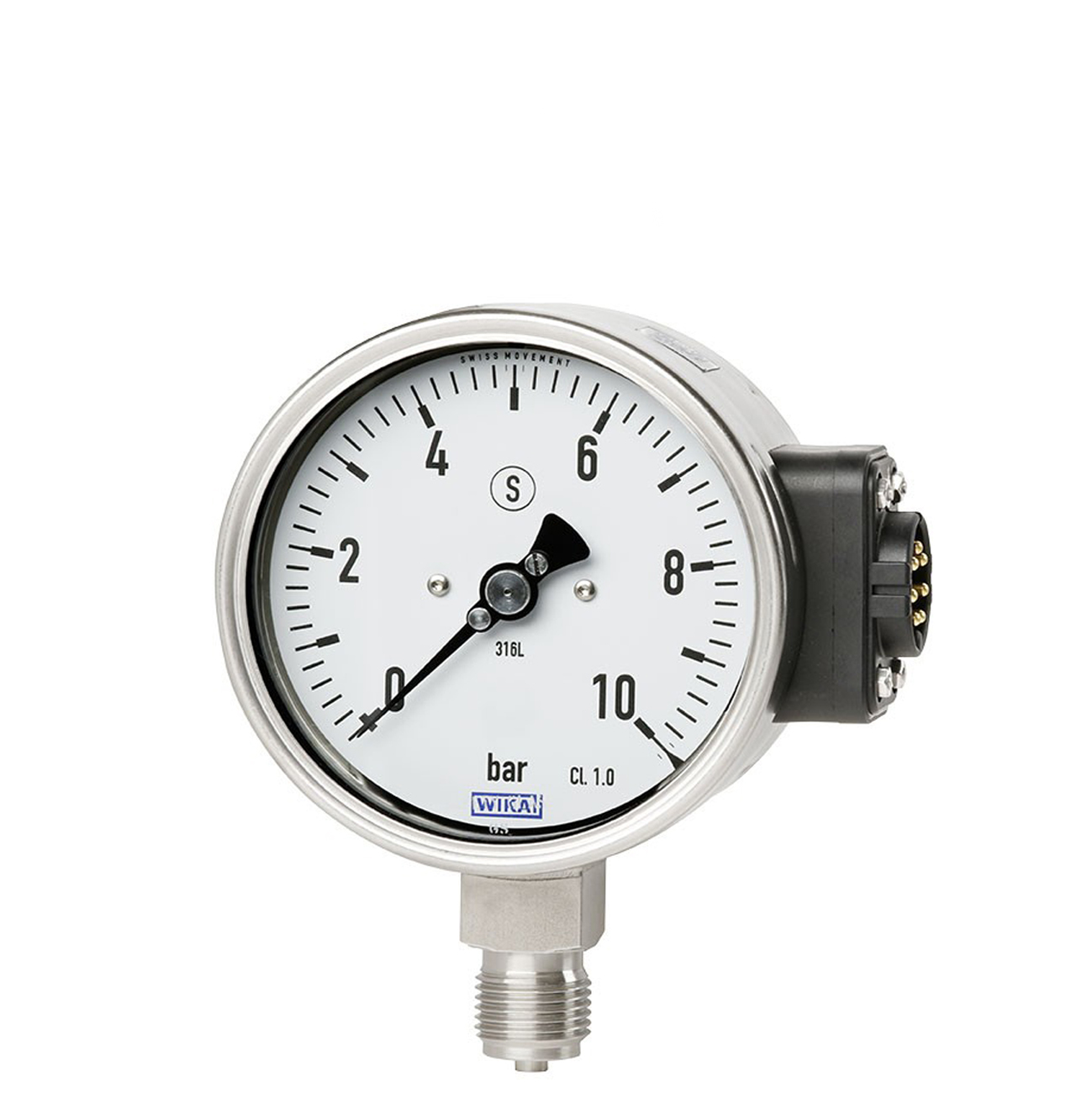

WIKA | Bourdon tube pressure gauge model Typ NETRIS?3

Compare
SKU: 20532 Category:
Description

Description

The model PGU2x.100 pressure gauge in combination with the model NETRIS?3 radio unit is used wherever web-based remote monitoring of the process pressure is desired in addition to on-site indication.

The model PGU2x.100 combines a mechanical measuring system with electronic signal processing and is intended for connection to the WIKA model NETRIS?3 radio unit. In this way, cloud based process and plant monitoring can be realised in industrial applications. Condition-based and preventive maintenance through centralised big data analysis is thus possible.

Technical Specification

Applications

  • Remote monitoring of the process pressure for non-critical applications in combination with model NETRIS?3 radio unit
  • Process industry: Oil and gas, chemical and petrochemical industries, water and wastewater, power generation
  • For gaseous and liquid aggressive media that are not highly viscous or crystallising
  • Increased safety requirements for personal protection

Special features

  • IIoT-capable measuring instrument in combination with model NETRIS?3 radio unit
  • Mechanical on-site indication with integrated digital interface
  • Intrinsically safe version Ex i per ATEX, IECEx
  • Measuring ranges from 0 ? 0.6 to 0 ? 1,600 bar [0 ... 10 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges
