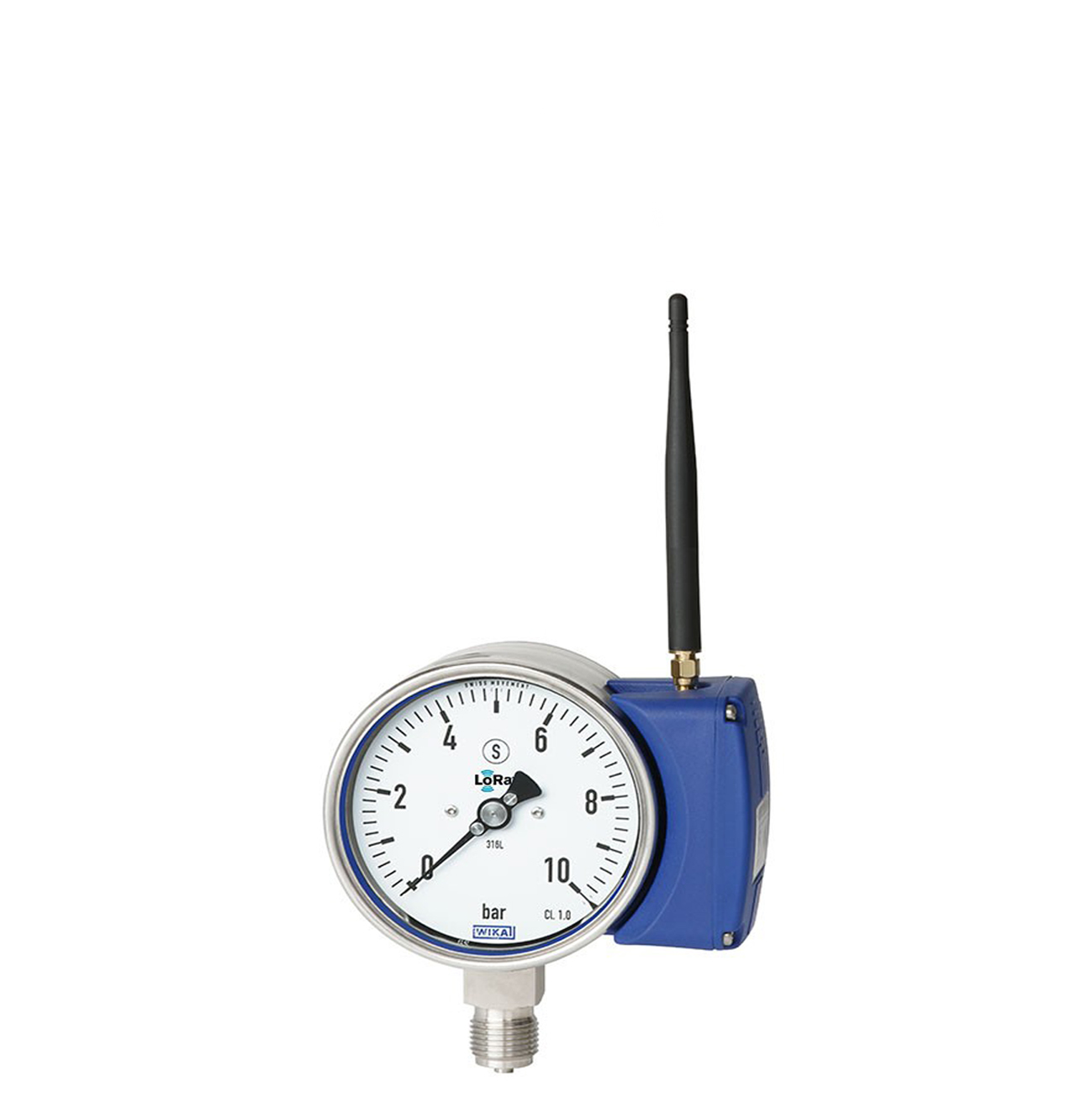

WIKA | Bourdon Tube Pressure Gauge With Wireless Transmission

Compare
SKU: 20538 Category:
Description

Description

The IIoT-capable model PGW2x.100 pressure gauge finds its use wherever the process pressure has to be indicated on-site and, at the same time, centralised, web-based remote monitoring is required.

The model PGW2x.100 is based on a fully welded and robust Bourdon tube measuring system. It therefore combines the mechanical measuring system with electronic signal processing.

Battery-operated wireless transmission via LoRaWAN??(?Long Range Wide Area Network?) is based on LPWAN technology (?Low Power Wide Area Network?) to enable high transmission ranges and long battery life.

Technical Specification

Applications

  • Condition-based and preventive maintenance through centralised big data analysis
  • Process industry with increased safety requirements: Oil and gas, chemical and petrochemical industries, water and wastewater, power generation, basic materials industry
  • Remote monitoring of the process pressure for non-critical applications
  • For gaseous and liquid aggressive media that are not highly viscous or crystallising

Special features

  • IIoT-capable measuring instrument with mechanical on-site indication
  • Battery-operated LoRaWAN??wireless transmission based on LPWAN technology
  • High transmission range up to 10 km [6 mi] with long battery life (up to 5 years)
  • Stainless steel version, model PGW23.100 or Monel version, model PGW26.100
  • Measuring ranges from 0 ? 0.6 to 0 ... 1,600 bar [0 ... 10 to 0 ... 20,000 psi] as well as vacuum and +/- measuring ranges
