WIKA – Radio Unit With LPWAN

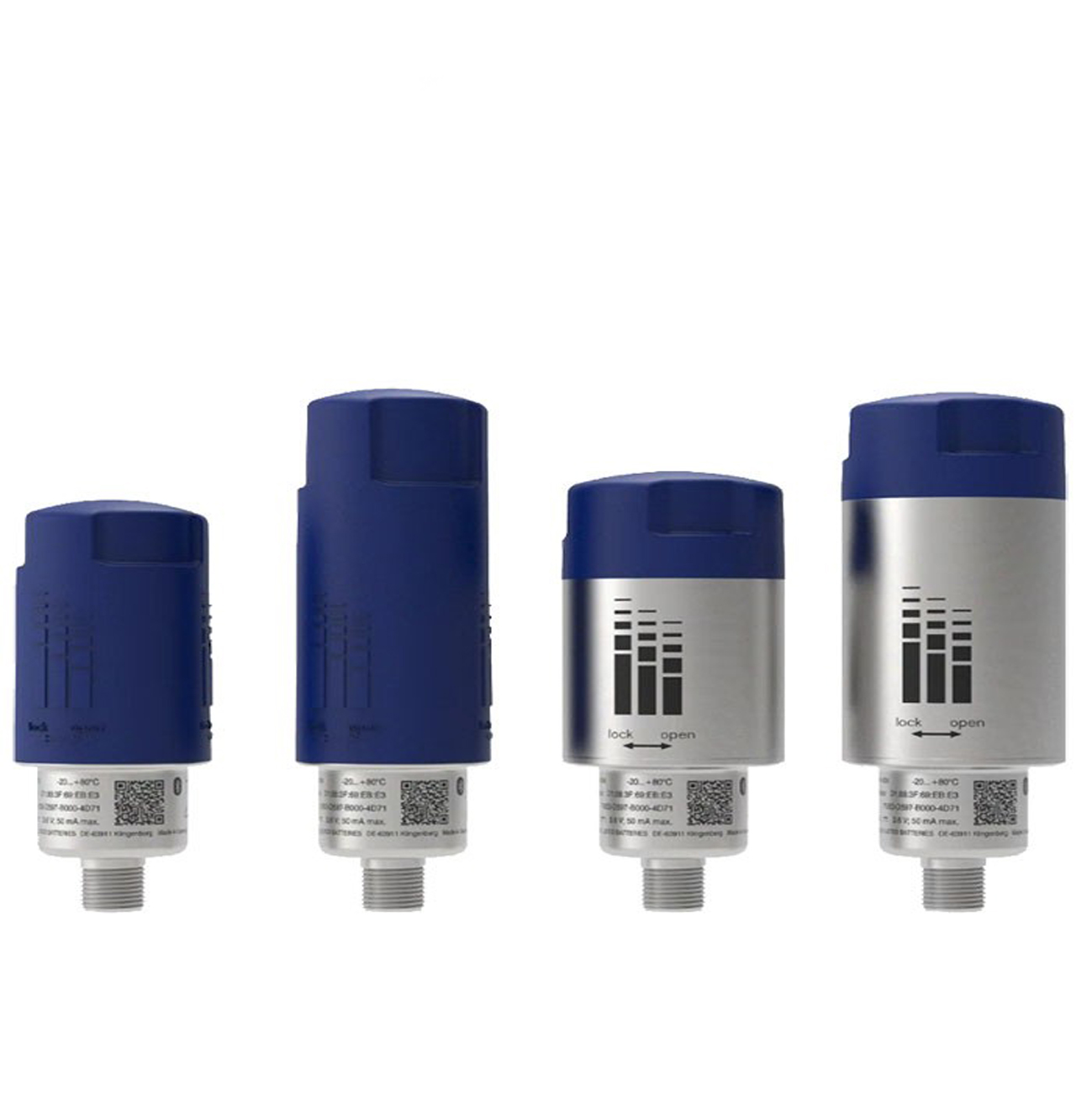

The model NETRIS^®1 is a WIKA radio unit to which standard sensors can be connected in order to bring the measured data wirelessly to a cloud for big-data analysis. It uses the licence-free LoRaWAN^®, mioty^® and Bluetooth^® radio standards and is used, for example, on mobile equipment and remote measuring points. Thanks to intelligent measurement and transmission control and a replaceable battery, the radio unit can be operated over a long battery life.

The radio unit receives the data via connected measuring instruments with a standard signal of 0 … 10 V or 4 … 20 mA or an RTD in accordance with the Pt100/Pt1000 standard in 2- or 3-wire technology. The fully encapsulated instrument with IP65 ingress protection transmits the received data continuously to a cloud via configurable data packets with LPWAN Bluetooth^®.

The LPWAN technology (“Low Power Wide Area Network”) enables long transmission ranges and a long battery life.
